New Dyna

Commercial

Start From

Rp. 414,050,000

Warna

Red

Jenis Bahan Bakar

Transmisi

Tipe

360° Visualizations

*
Gambar Exterior 360° Belum Tersedia

Exterior

New Head Lamp & Fog Lamp
New Front Grille & Bumper
New Front Panel Design
Mirror Stay with Body-Colour
Euro 4
Bak kayu/Wood Truck
Jenis Barang Angkut: Buah Sawit, Pasir, Batubara
115ST 4x2: Direkomendasikan
136HT Hi-Gear: Direkomendasikan
Dump
Jenis Barang Angkut: Tandan Buah Sawit (TBS), Pasir, Batubara.
115ST 4x2: Diperbolehkan
136HT Hi-Gear: Direkomendasikan
Boks Aluminium/Steel Box
Jenis Barang Angkut: Baja
115ST 4x2: Direkomendasikan
136HT Hi-Gear: Diperbolehkan
Tangki Besi/Tank Truck
Jenis Barang Angkut: Gas, Minyak, Air
115ST 4x2: Diperbolehkan
136HT Hi-Gear: Direkomendasikan
Truk Losbak/Flat Deck
Jenis Barang Angkut: Mesin, Pelat Baja Gulung, Pipa
115ST 4x2: Diperbolehkan
136HT Hi-Gear: Diperbolehkan
Bak Besi Terbuka/Pick Up
Jenis Barang Angkut: pasir, Batu, Besi
115ST 4x2: Direkomendasikan
136HT Hi-Gear: Direkomendasikan
Arm Roll
Jenis Barang Angkut: Sampah
115ST 4x2: Diperbolehkan
136HT Hi-Gear: Diperbolehkan

Interior

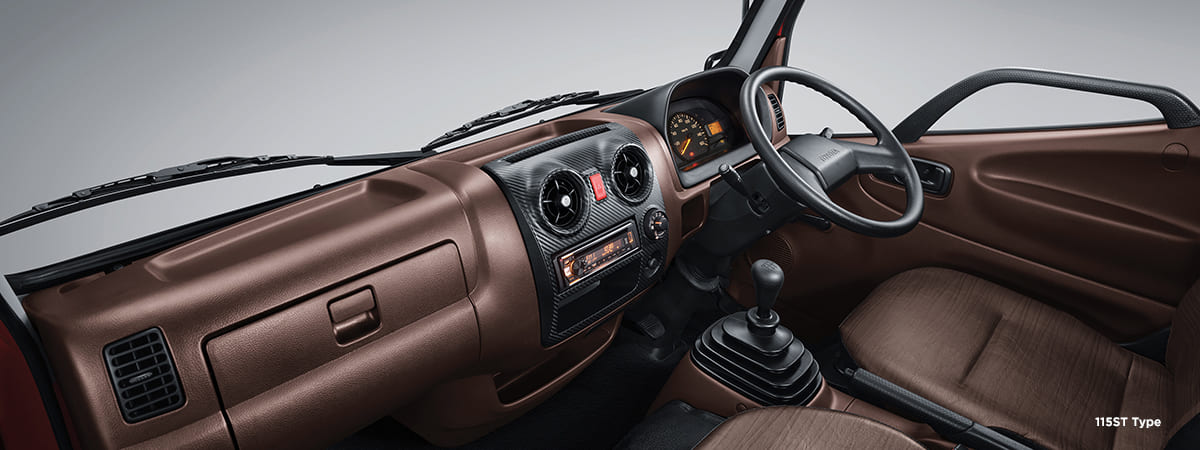

New Brown Dashboard & Center Cluster

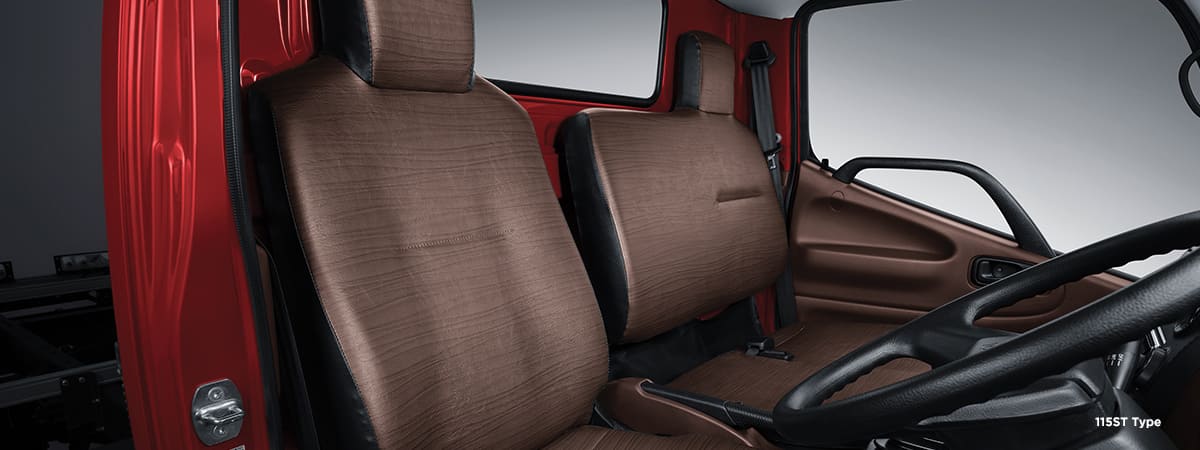

New Darker Color Seat Cover
New Blower

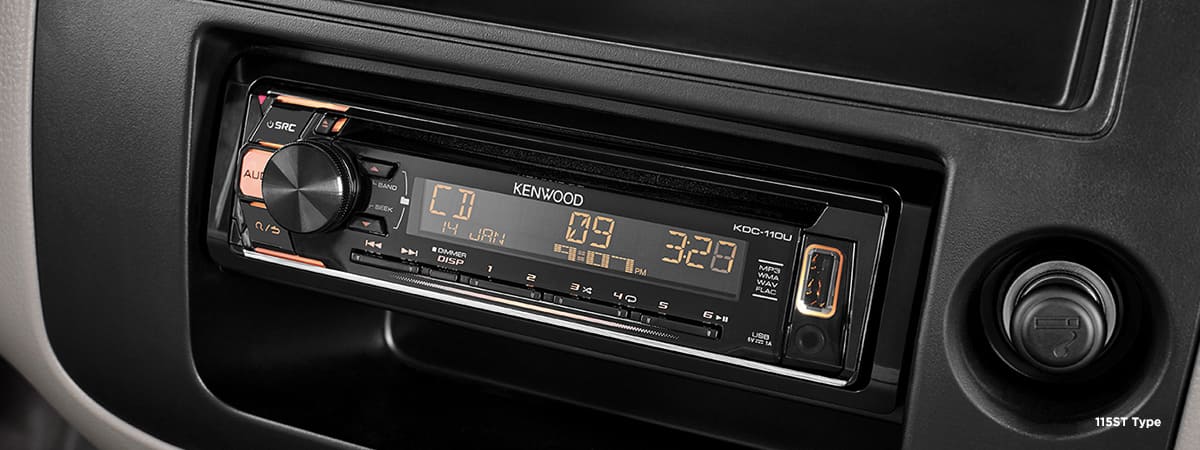

Audio head Unit

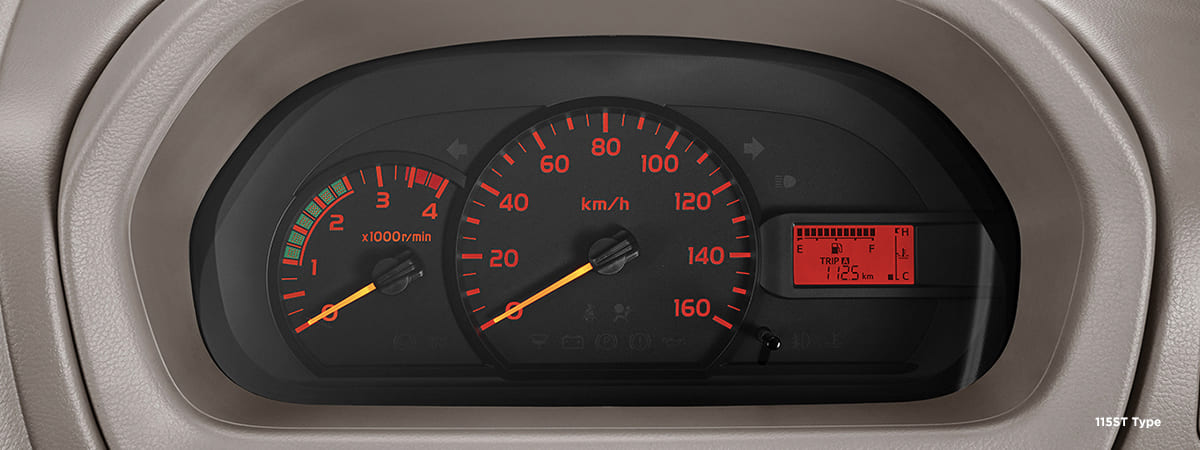

Speedometer

Performance

Euro 4
Mesin Dyna datang dengan tenaga dan torsi yang lebih baik, dan manual transmisi 6 percepatan juga kini hadir di Dyna tipe 136HT. Gross Vehicle Weight Dyna juga bertambah, untuk membawa beban yang lebih hebat untuk setiap kebutuhan.

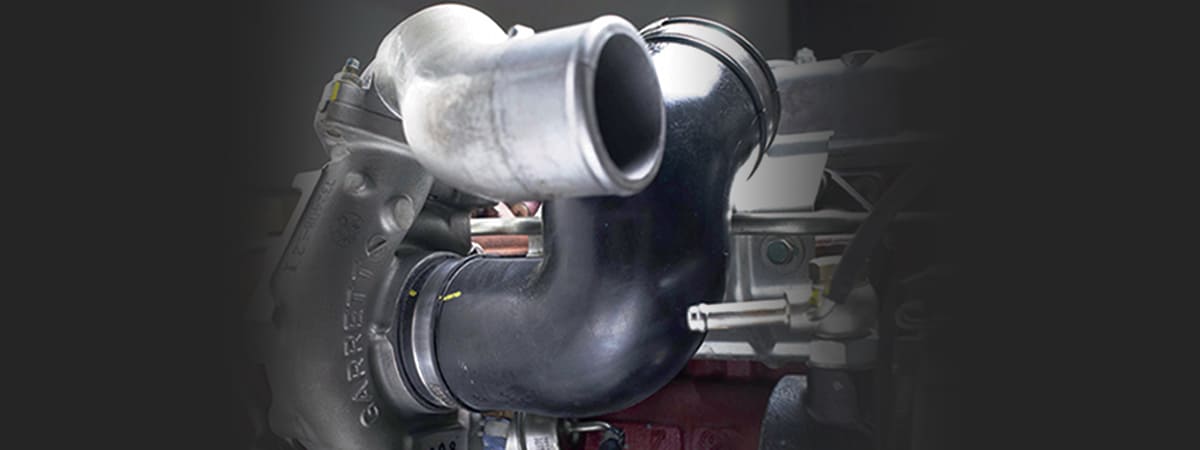

Turbo Intercooler
Membuat tarikan mesin makin kuat dan konsumsi BBM makin efisien.
136HT HI-Gear 4x2 6MT (PTO) (Spot Order*)
136HT HI-Gear 4x2 6MT (PTO) (Spot Order*)
136HT HI-Gear 4x2 6MT (Spot Order*)
136HT HI-Gear 4x2 6MT (Spot Order*)
115ST 4x2 5MT (Spot Order*)
115ST 4x2 5MT (Spot Order*)
Dimension
Panjang Total (mm) 6026
Lebar Total (mm) 1945
Tinggi Total (mm) 2154
Jarak Poros Roda / Wheelbase (mm) 3380
Jarak Pijak Depan / Front Tread (mm) 1455
Jarak Pijak Belakang / Rear Tread (mm) 1480
Jarak Terendah / Ground Clearance (mm) -
Box/Dek Size Panjang Total (mm) -
Box/Dek Size Lebar Total (mm) -
Box/Dek Size Tinggi Total (mm) -
Berat Kosong (kg) 8600
Engine
Tipe Mesin Type NO4C-WY , DIESEL 4 STROKE-INLINE
Isi Silinder (cc) 4.009
Daya Maksimal (ps/rpm) 136/2.500
Torsi Maksimal (kgm/rpm) 39,8/1.400 - 2.500
Daya Maksimal Electric Motor (ps) -
Torsi Maksimal Electric Motor (ps) -
Sistem Bahan Bakar DIRECT INJECTION
Kapasitas Tangki / Fuel Capacity (Liter) 100
Tipe Transmisi 6 M/T , RE61
Perbandingan Gigi 1st 6.370
Perbandingan Gigi 2nd 3.870
Perbandingan Gigi 3rd 1.913
Perbandingan Gigi 4th 1.461
Perbandingan Gigi Mundur 5.926
Perbandingan Gigi Akhir 6.833
Sistem Penggerak Roda -
Chassis
Sistem Kemudi Recirculating Ball Screw dengan Power Steering
Suspensi Depan Rigid Axle with Semi Elliptic Leaf
Suspensi Belakang Rigid Axle with Semi Elliptic Leaf
Turning Radius (m) -
Rem Depan Two Leading Shoe with Vacuum
Rem Belakang Dual Two Leading Shoe with Vacuum
Ukuran Ban 7,50-16-14PR
Ban Cadangan -
Interior
Tilt & Telescopic Tilt-Telescopic with Manual Lock
Automatic High Beam -
Lampu Kabut -
Power Seat -
Air Conditioner -
Air Conditioner Double Blower -
Speaker -
Monitor LCD -
Sunroof -
Safety & Security
SRS Airbags -
ABS, EBD, BA -
Cruise Control -
Alarm & Remote -
Rear Camera -
Child Restraint System / ISO FIX -
Back & Corner Sensor -
